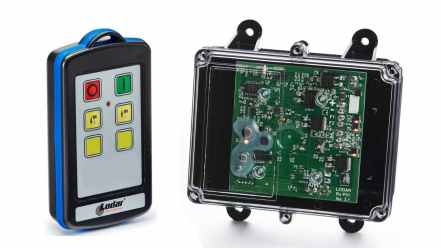

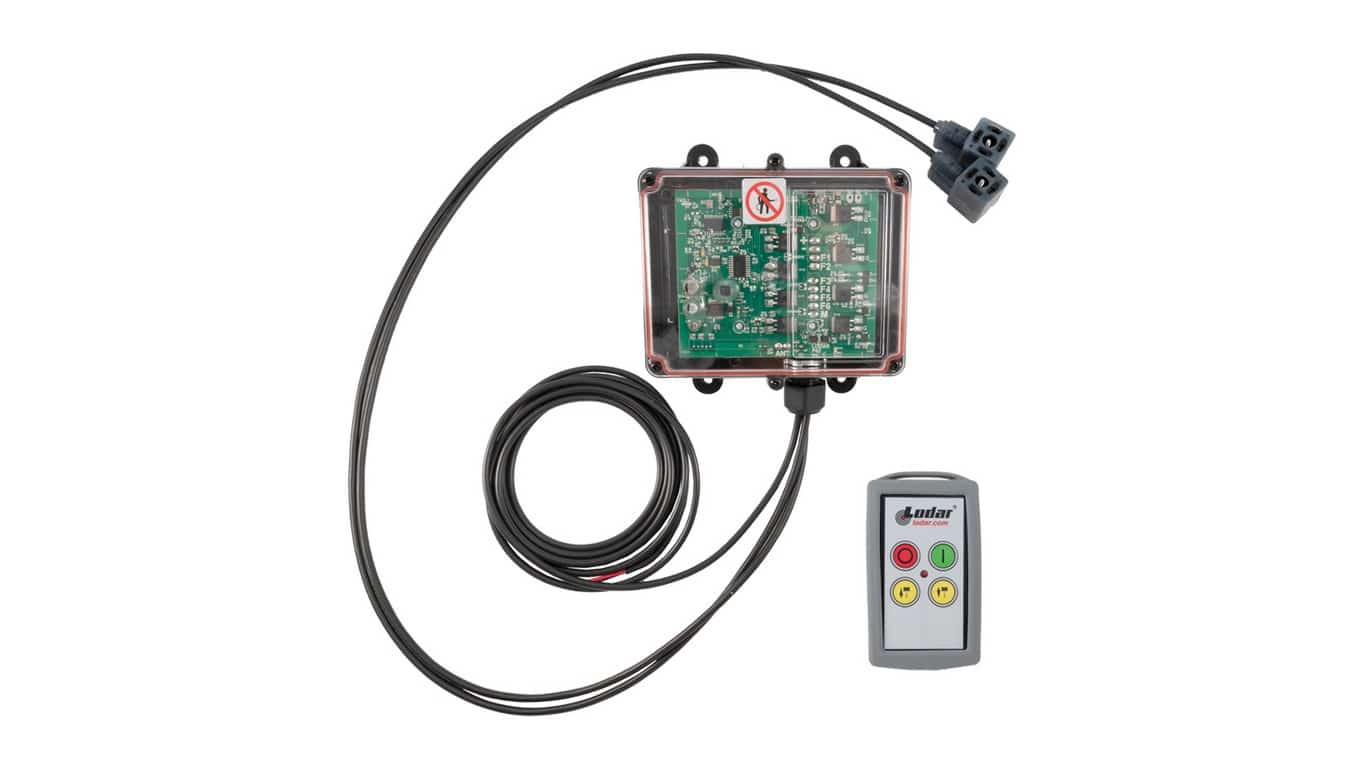

Our ELP plug and play kit uses a standard Lodar wireless radio remote control system which is customised by ourselves.
We can build it with:
- A splashproof transmitter
- A waterproof transmitter
- Button images of your choice
- Different cable lengths
We remove the standard wiring and replace it with the components mentioned below to make it simple and quick to install without the need for an electrician.
It has everything you need to operate a single slice hydraulic valve block with two solenoids, i.e. Hy-Pro.
The Atam DIN connectors are sealed, fully waterproof and have LEDs to indicate operation.

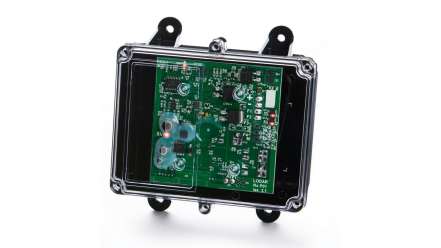

The receiver keeps the IP67 waterproof rating because of the components we install.
For circuit protection we install a 10A automotive fuse inside the receiver.
We have made our kit easy to install with just 1 wire to connect to a power supply.

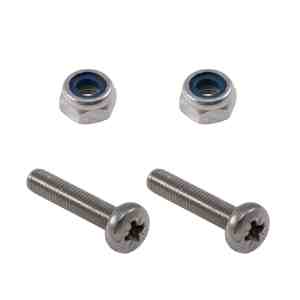

Mounting is with 4 mounting holes using the supplied stainless steel A2 grade fasteners.
Power up the system, press a button and use the lit LED on the plug to identify the DIN plug to put into the valve.
Any questions, please contact us. The cable exit is your choice: default as the picture, or back in the centre.
