Sale!

Lodar 2 Function 10 amp Standard Remote Control System – 92100

£204.00 Ex VAT

Has a red seal in the clear plastic lid

NOT Compatible with TI transmitters

Made in England

Available options *

Button images

List your chosen Lodar Button Image numbers here, starting at the row under on / off and working your way down

(max file size 2 GB)

Free UK shipping on all orders over £60

Worldwide shipping from £24.50

  • 30 days easy returns
  • Order yours before 4pm for same day dispatch
Guaranteed Safe Checkout

The Lodar 2 Function 10 Amp Standard Remote Control System – 92100:

Introducing the best selling Lodar 2 Function Standard Remote Control System, 92100. Designed and manufactured in the UK by Lodar using state-of-the-art technology which brings convenience to your fingertips. With a range of 60 metres, whether you’re controlling a winch or operating industrial equipment.

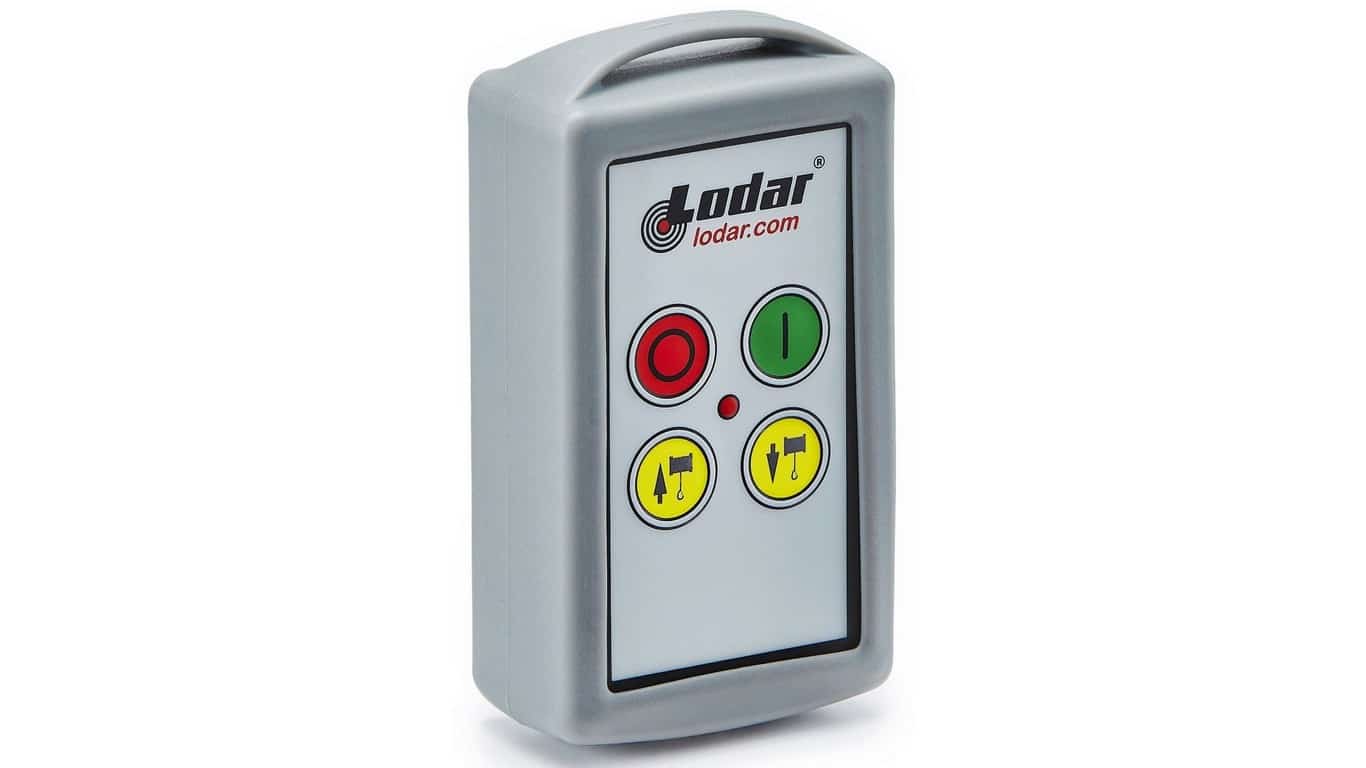

Featuring the best selling splash proof transmitter, the Lodar 2 Function Standard Remote Control System, 92100 is designed to withstand use indoor and out, in addition its compact and ergonomic design, measuring 120 x 65 x 35 mm, ensures a comfortable grip and easy operation.

With 2 buttons, you have the power to operate multiple outputs with ease, therefore providing a simple and efficient solution backed by the Lodar manufacturer’s warranty. The solid-state receiver switching system is capable of operating a 10 Amp output. In short, it delivers reliable and consistent performance, ensuring your device responds promptly to commands.

The Lodar 2 Function Standard Remote Control System, 92100 works with a 12/24 Vdc supply voltage. Its 4 x 0.75mm cables, approximately 2.8 meters long, offer versatility and flexibility for installation.

To boost signal strength for optimal performance of a concealed receiver, there is provision inside the receiver to add an optional external aerial connector and install a remote aerial, as seen in the accessories section below.

Last, but not least, you have our support because we pride ourselves with a ‘here to help’ attitude. Contact us if you would like help or advice.

Key Features:

  • Pre-wired with cable, lanyard and instructions
  • Range: 60 metres
  • 2 Functions
  • Output type: On/Off
  • Extensive choice of button images

Additional information

Range

60 metres

Batteries (included)

2 x AAA or LR3 (1.5 volts)

Buttons

2

Transmitter type

Standard – Splashproof

Transmitter overall dimensions

120 x 65 x 35 mm

Output type

On / Off

IP transmitter rating

IP54

System frequency

92nnn-3 UK and RoW Standard Frequency (optional for USA), 92nnn-8 USA Standard Frequency (optional for RoW)

Receiver switched outputs

S +ve optional, 2 +ve

Receiver overall dimensions

160 x 160 x 55 mm – Std.

Maximum output current

10 Amp overall

IP receiver rating

IP67

Receiver switching system

Solid State (FET)

Supply voltage

12/24 Vdc

Cable details

4 x 0.75mm cables, Approx 2.8m long

Radio Frequency Module

Legacy Chipset

External aerial connection

Optional Fitment
