This part has been superseded and discontinued in our store.

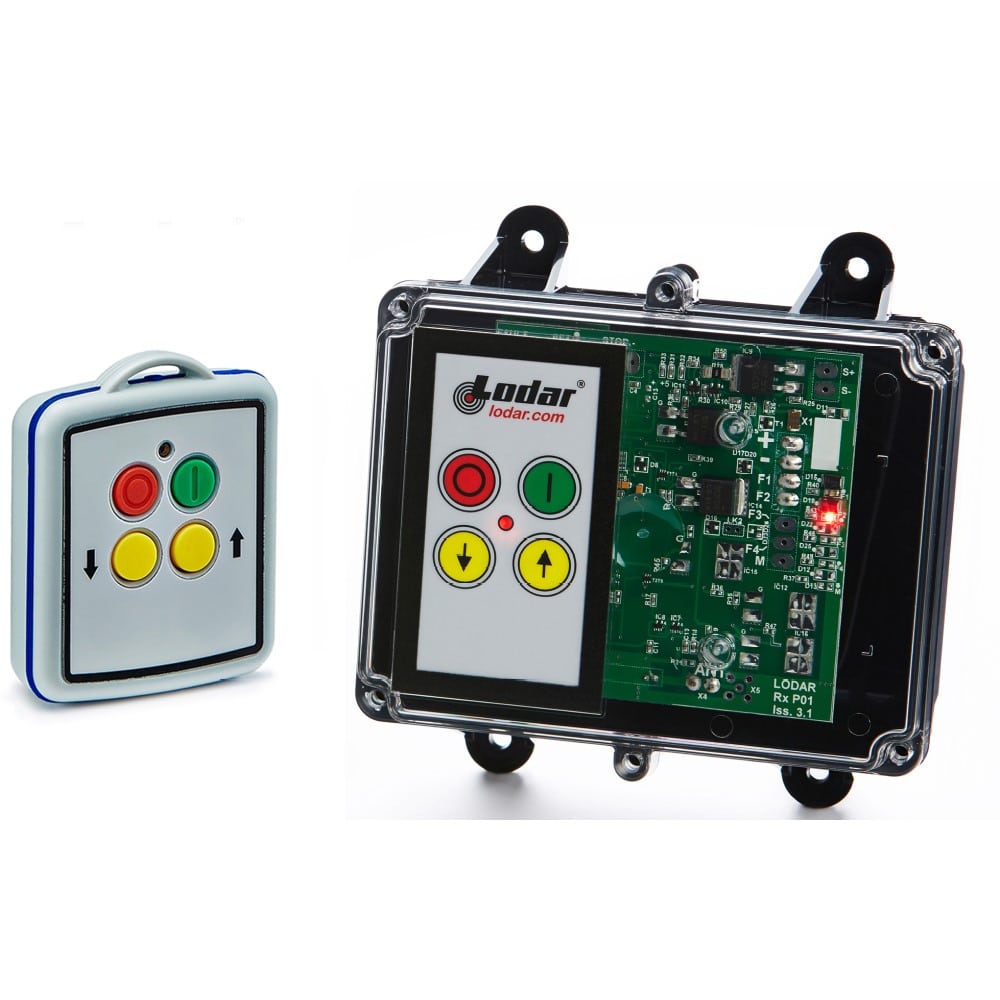

Lodar 2 Function 10 Amp Mini Remote Control System with Keypad – 93002K
Has a red seal in the clear plastic lid
NOT Compatible with TI transmitters
Made in England
Additional information
Range | 150 metres |
---|---|
Batteries (included) | 2 x AAA or LR3 (1.5 volts) |
Buttons | 2 |
Transmitter type | Mini – Waterproof |
Transmitter overall dimensions | 80 x 65 x 25 mm |
Output type | On / Off |
IP transmitter rating | IP67 |
Receiver switched outputs | Master +ve, S +ve optional, 2 +ve |
Receiver overall dimensions | 160 x 160 x 55 mm – Std. |
Maximum output current | 10 Amp overall |
IP receiver rating | IP67 |
Receiver switching system | Solid State (FET) |
Supply voltage | 12/24 Vdc |
Cable details | 7 x 0.75mm cables, Approx 2.8m long |
Radio Frequency Module | Legacy Chipset |
External aerial connection | Fitted as Standard |
