Allows proportional control of hydraulic valve blocks using a variable current between 200 mA and 3000 mA per channel output, up to a maximum of 10 Amps output from the receiver when operating multiple outputs.
Designed and manufactured in the UK.

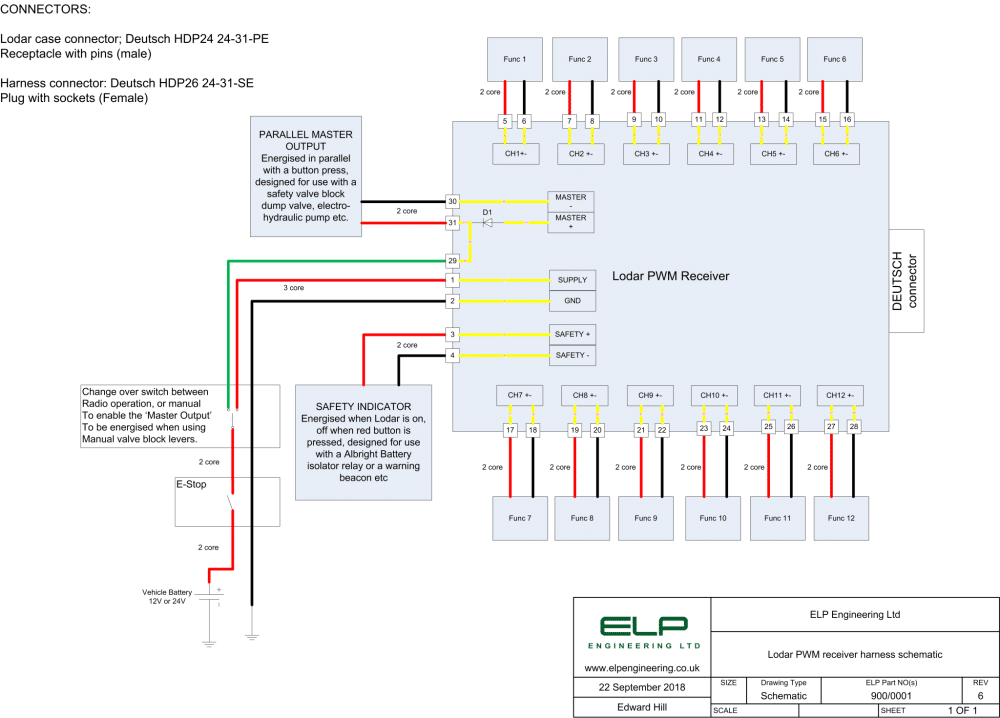

Comes pre-wired with a Deutsch 31 pin connector on the box and instructions.
Comes pre-configured in either a flow-control build or a directional control.
For an explanation of how it works, please click to view.
For the free Lodar software and programming instructions, please click to view (you will be redirected to Lodar’s website).
