Sale!

Lodar 10 Function IP Air Operated Remote Control System – without cylinders – 92280

Original price was: £1,345.00.Current price is: £1,023.00. Ex VAT

Has a red seal in the clear plastic lid

NOT compatible with TI transmitters

Made in England

Button images

List your chosen Lodar Button Image numbers here, starting at the row under on / off and working your way down

(max file size 2 GB)

Please choose the same voltage that the vehicle or machine uses. If in doubt, check the manufacturer’s specification.

Free UK shipping on all orders over £60

Worldwide shipping from £24.50

  • 30 days easy returns
  • Order yours before 4pm for same day dispatch
Guaranteed Safe Checkout

Designed and manufactured in the UK.

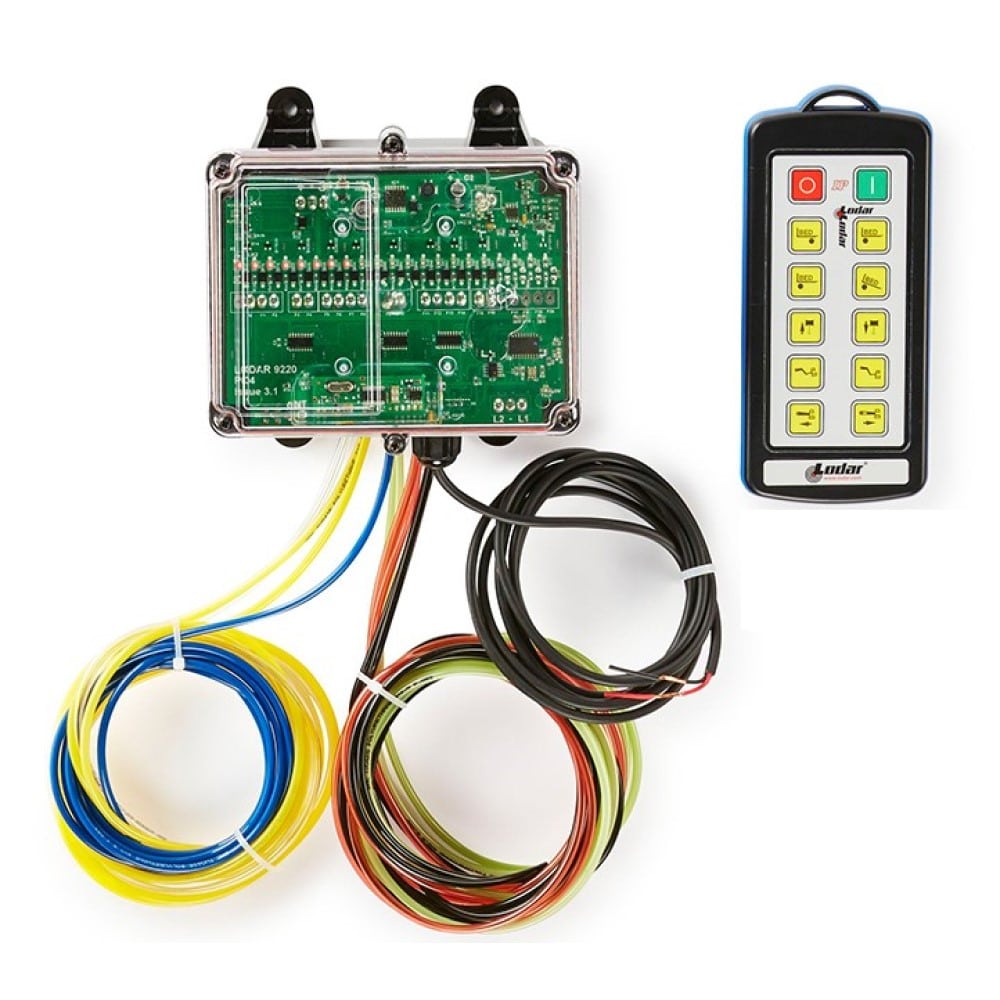

Contains everything in the picture and comes pre-wired with cable, air tubes, lanyard and instructions.

Lodar’s IP transmitter is designed to be used in harsh environments where it can get wet and dirty and still provide a reliable remote control which you can wash at the end of the day.

The tactile dome buttons are protected by a wipe clean overlay.

Customisation is available for transmitter function buttons on any size order. To select from Lodar’s library of button images, click to view.

For an explanation of Lodar’s radio frequency options and what we will despatch to you, click to view.

Additional information

Range

60 metres

Batteries (included)

4 x AAA or LR3 (1.5 volts)

Buttons

10

Transmitter type

IP – Waterproof

Transmitter overall dimensions

185 x 85 x 35 mm

Output type

On / Off

IP transmitter rating

IP67

Receiver switched outputs

Master +ve, S +ve optional, 2 +ve

Receiver overall dimensions

160 x 160 x 80 mm – Deep

Maximum output current

10 Amp overall

IP receiver rating

IP65

Receiver switching system

Solid State (FET)

Supply voltage

12/24 Vdc

Cable details

Power supply 2.8m with 2 x 1mm cables

Radio Frequency Module

Legacy Chipset

External aerial connection

Fitted as Standard
