Lodar 10 Function 10 Amp IP Remote Control System – 92210

Original price was: £709.00.Current price is: £539.00. Ex VAT

Has a red seal in the clear plastic lid

NOT Compatible with TI transmitters

Made in England

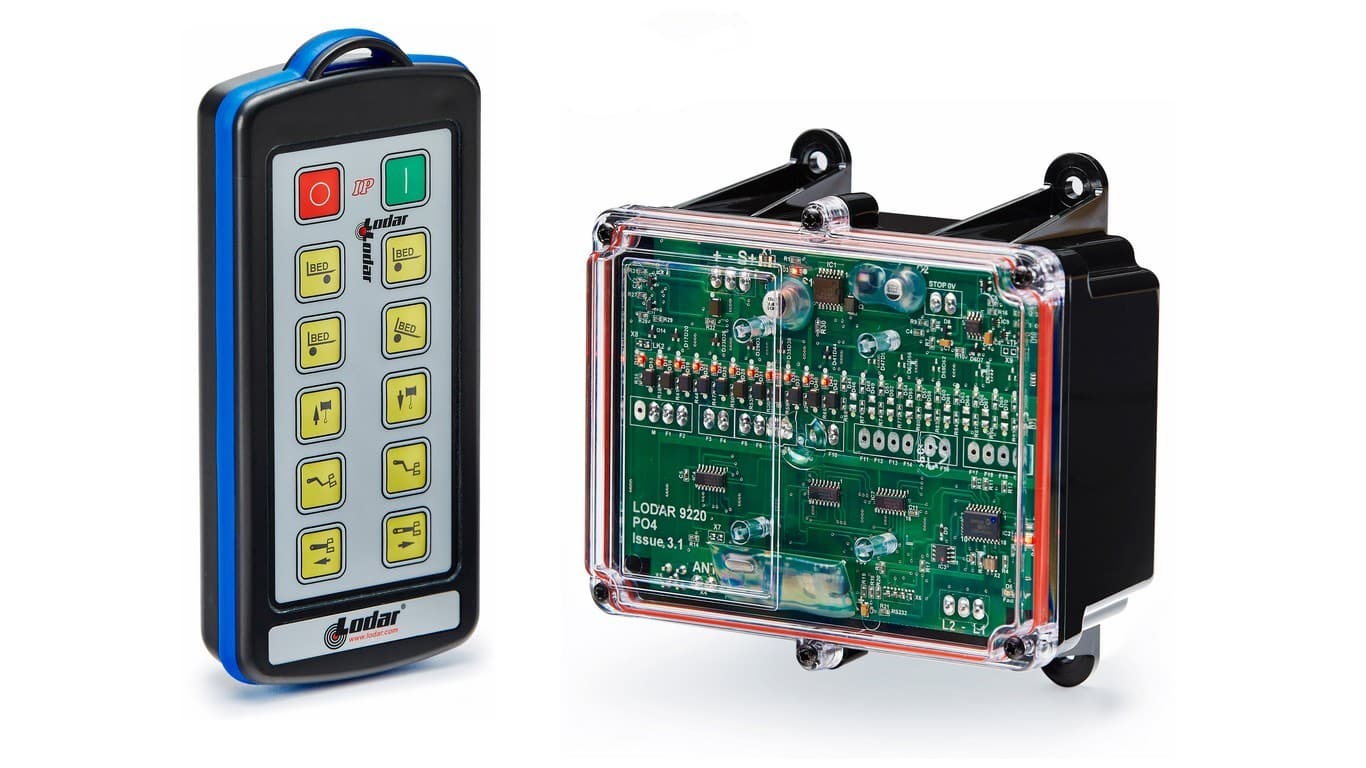

Lodar wireless remote control system 92210
Lodar 10 Function 10 Amp IP Remote Control System - 92210 £709.00 Original price was: £709.00.£539.00Current price is: £539.00. Ex VAT
Available options

Button images

List your chosen Lodar Button Image numbers here, starting at the row under on / off and working your way down

(max file size 2 GB) Clear

Free UK shipping on all orders over £60

Worldwide shipping from £24.50

  • 30 days easy returns
  • Order yours before 4pm for same day dispatch
Guaranteed Safe Checkout

The Lodar 10 Function 10 Amp IP Remote Control System 92210:

Introducing Lodar’s best-selling 10 Function IP Remote Control System, 92210. Designed and manufactured in the UK by Lodar using state-of-the-art technology which brings convenience to your fingertips. With a range of 60 metres, this system gives you the freedom to control your vehicle or machinery from a distance, hence making it perfect for a wide variety of outdoor applications in agriculture, forestry and the recovery industry.

Featuring a waterproof IP transmitter, the Lodar 10 Function IP Remote Control System 92210 is designed to withstand even the harshest conditions. Its compact and ergonomic design, measuring 185 x 85 x 35 mm, ensures a comfortable grip and easy operation. In addition, being IP67 rated, this transmitter will operate in even the most challenging environments.

With 10 buttons, you have the power to operate multiple outputs with ease, therefore providing a simple and efficient solution backed by the Lodar manufacturer’s warranty. The solid-state receiver switching system is capable of operating a 10 Amp output. In short, it delivers reliable and consistent performance, ensuring your device responds promptly to commands.

The Lodar 10 Function IP Remote Control System 92210 works with a 12/24 Vdc supply voltage.

To boost signal strength for optimal performance of a concealed receiver, there is provision inside the receiver to add an optional external aerial, as seen in the accessories section below.

Last, but not least, you have our support because we pride ourselves with a here to help attitude. Contact us if you would like help or advice.

Key Features:

  • With 3 PG9 cable glands, lanyard and instructions
  • Range: 60 metres
  • 10 Functions
  • Output type: On/Off
  • Extensive choice of button images

Additional information

Range

60 metres

Batteries (included)

4 x AAA or LR3 (1.5 volts)

Buttons

10

Transmitter type

IP – Waterproof

Transmitter overall dimensions

185 x 85 x 35 mm

Output type

On / Off

IP transmitter rating

IP67

Receiver switched outputs

S +ve optional, Master +ve, 10 +ve

Receiver overall dimensions

160 x 160 x 80 mm – Deep

Maximum output current

10 Amp overall

IP receiver rating

IP55

Receiver switching system

Solid State (FET)

Supply voltage

12/24 Vdc

Cable details

No Cable Supplied

Radio Frequency Module

Legacy Chipset

Brand

Lodar

Lodar Model:

92nnn-3 Standard for UK and ROW, optional USA, 92nnn-8 Standard for USA, optional UK and ROW
