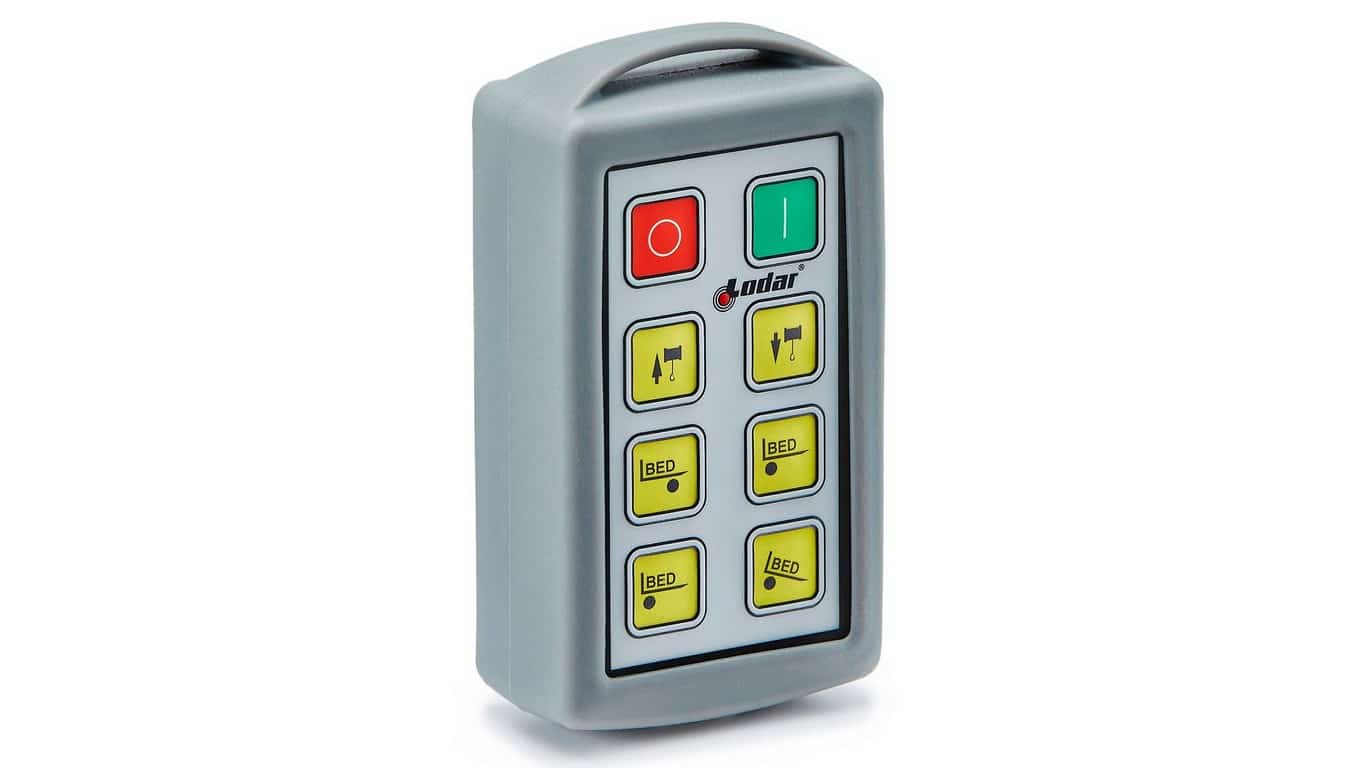

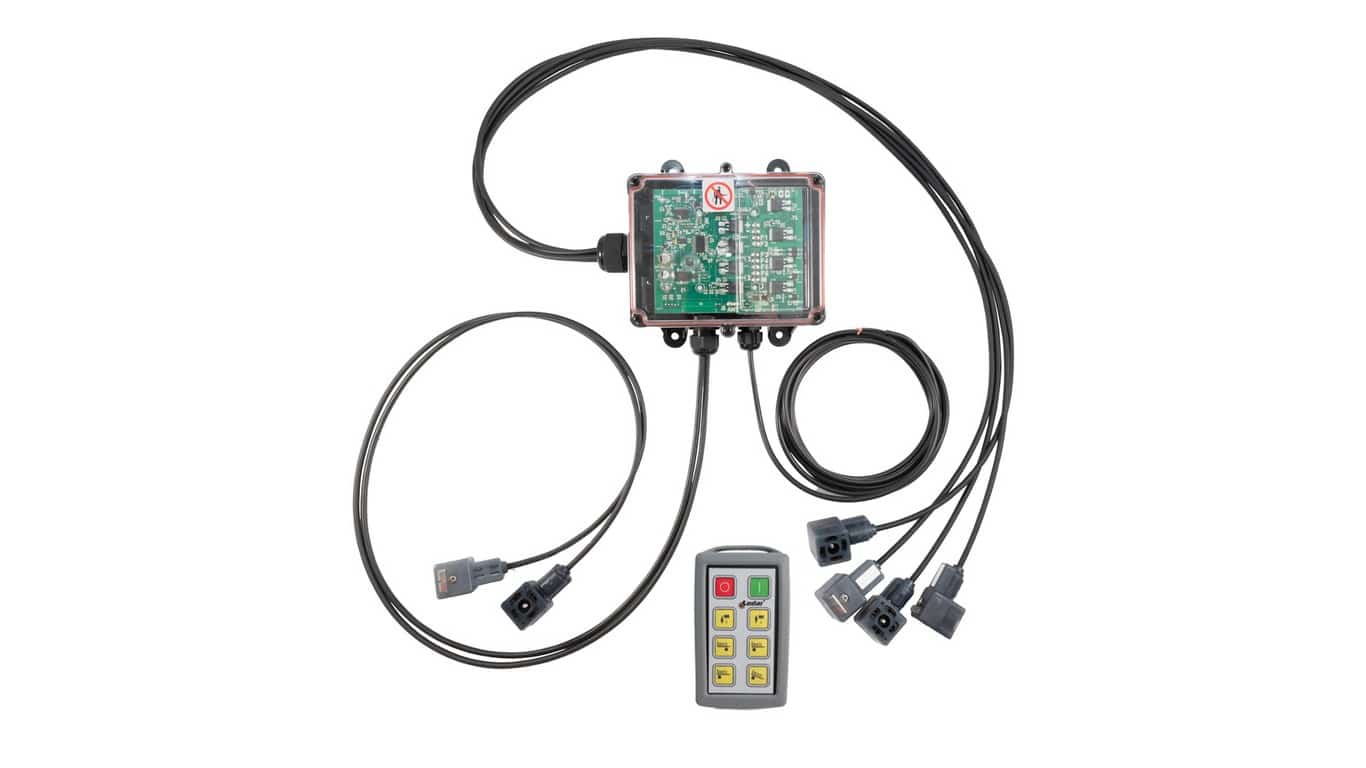

Our ELP plug and play kit uses a standard Lodar 92106 radio remote control system.
It has everything you need to operate a triple slice hydraulic valve block with six solenoids, i.e. Hy-Pro.
The Atam DIN connectors are sealed, fully waterproof and have LEDs to indicate operation.
The receiver keeps the IP67 waterproof rating because of the components we install.
For circuit protection we install a 10A automotive fuse inside the receiver.
We have made our kit easy to install with just 1 wire to connect to a power supply.
Mounting is with 4 mounting holes using the supplied stainless steel A2 grade fasteners.
Power up the system, press a button and use the lit LED on the plug to identify the DIN plug to put into the valve.
Any questions, please contact us. The cable exit is your choice: default as the picture, or back in the centre.
